The kraft bubble mailer era is ending. Paper padded mailers - using 100% paper-based honeycomb or embossed cushioning - now deliver 70-90% of bubble wrap performance with zero plastic, zero EPR liability, and full curbside recyclability. This is the complete engineering and application guide.
Why Kraft Bubble Mailers Are Being Phased Out

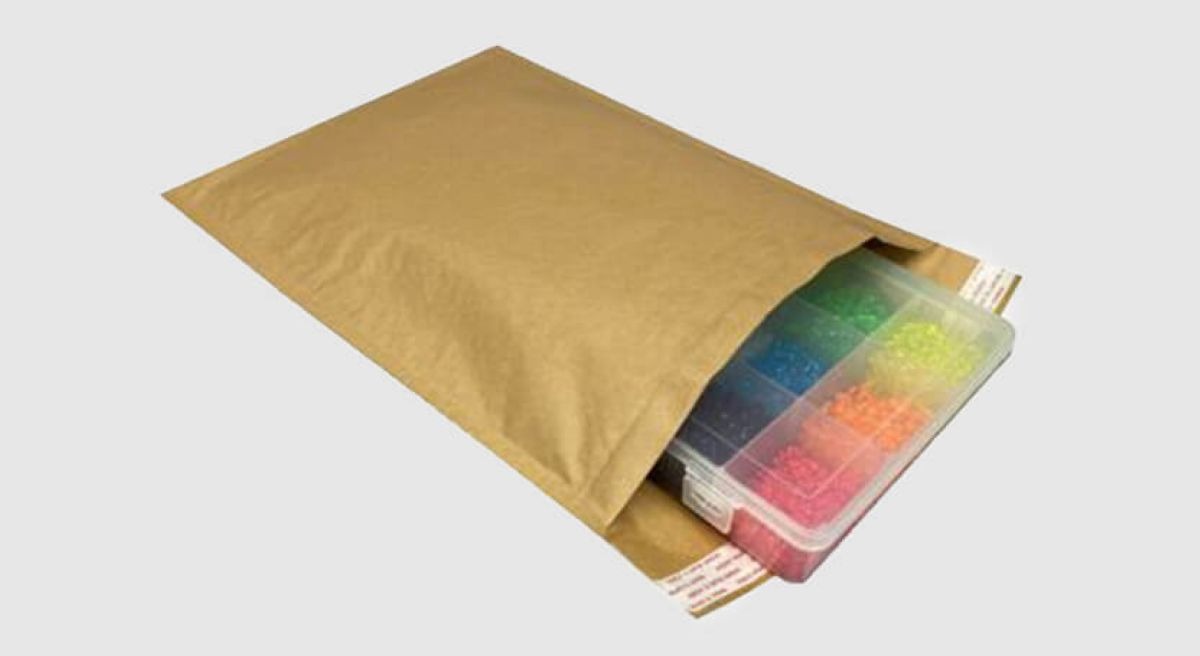

A kraft bubble mailer looks eco-friendly but is not. It bonds kraft paper to an internal polyethylene bubble lining - creating a mixed-material construction that cannot be recycled in standard paper streams. At paper MRFs, the PE lining wraps around sorting rollers, causing jams.
Result: virtually 100% of kraft bubble mailers end up in landfills, where the PE lining takes 500-1,000 years to decompose. Paper padded mailers eliminate this entirely: no PE, no mixed-material issue, 100% paper - 100% recyclable.
Honeycomb Paper Padding: Specifications
Honeycomb padding uses die-cut kraft paper that self-expands into hexagonal cell structure. The hexagonal geometry - same used in aircraft fuselage cores - distributes impact loads across hundreds of cells, absorbing 65-75% of kinetic energy through controlled structural deformation.
| Parameter | Specification |
|---|---|
| Cell Geometry | Hexagonal, 6-10mm inner diameter |
| Paper Weight | 60-80 GSM kraft (virgin or recycled) |
| Cushioning Depth (single) | 3-8mm expanded |
| Cushioning Depth (dual) | 6-16mm expanded |
| Impact Absorption | 65-75% of kinetic energy |
| Recovery | Non-recovering (permanent deformation absorbs energy - by design) |
| Best For | Glass, ceramics, jewelry, fragile electronics, pharma |
| Recyclability | 100% paper - curbside recyclable and compostable |
Embossed Paper Padding: Specifications
Embossed/macerated padding uses shredded recycled paper sandwiched between flat kraft outer layers. Thousands of trapped air pockets provide pneumatic cushioning with partial recovery.
| Parameter | Specification |
|---|---|
| Fill Material | Macerated recycled newspaper or kraft offcuts |
| Recycled Content | 80-100% post-consumer recycled |
| Cushioning Depth | 5-10mm |
| Impact Absorption | 50-65% of kinetic energy |
| Recovery | Partial - approx 60% spring-back |
| Cost vs Honeycomb | 10-20% lower (uses waste input) |
| Best For | Books, boxed products, packaged food, semi-rigid items |
Full Three-Way Comparison
| Feature | Honeycomb | Embossed | Kraft Bubble |
|---|---|---|---|
| Plastic Content | 0 grams | 0 grams | 3-8g PE |
| Curbside Recyclable | Yes | Yes | No |
| Impact Absorption | 65-75% | 50-65% | 70-80% |
| 1m Drop Test (500g) | Pass | Pass | Pass |
| Stacking Compression | Excellent | Excellent | Bubbles pop |
| Biodegrades In | 2-6 months | 2-6 months | 500+ years |
| EPR Compliance | Exempt | Exempt | Fees apply |
| Relative Cost | Moderate | Lower | Lowest upfront |
Application Guide by Product
| Product | Recommended | Reason |
|---|---|---|
| Glass serums | Honeycomb dual-layer | Point-load protection for curved glass |
| Compact mirrors | Honeycomb single-layer | Prevents shattering on flat drop |
| Fine jewelry | Honeycomb small | Prevents scratching; premium branding |
| Earbuds, cables | Embossed medium | Adequate protection at lower cost |
| Hardcover books | Embossed book-size | Corner/spine protection under stacking |
| Ceramic decor | Honeycomb dual XL | Max absorption for brittle materials |
| Pharmaceuticals | Honeycomb sterile-grade | Non-toxic, BIS pharma compliant |
| Artisan food | Embossed compostable | Fully compostable; aligns with food brand values |
ISTA Drop Test Results
| Test | HC Single | HC Dual | Embossed |
|---|---|---|---|
| 1m flat drop - 250g | Pass | Pass | Pass |
| 1m flat drop - 500g | Pass | Pass | Pass |
| 1m corner drop - 500g | Pass | Pass | Marginal |
| 1m flat drop - 1kg | Marginal | Pass | Fail |
| Vibration (ISTA 3A) | Pass | Pass | Pass |
| 5-high stacking | Pass | Pass | Pass |
Supplier Procurement Checklist
1. Confirm padding type - inspect sample for hexagonal cells (honeycomb) vs crinkled fill (embossed).
2. Verify outer shell GSM - min 100 GSM below 500g; 120+ GSM for 500g-1kg items.
3. Test seal adhesive - seal, load with weight, store 24 hours. Zero creep or lifting.
4. Specify return strip for categories above 10% return rate.
5. Demand certifications: FSC/PEFC for paper, ISO 9001 for quality, BIS for India.
6. Verify print registration - no overlap with seal strip or within 5mm of edge.
7. Sample 50 units before production - never commit large orders without drop testing your actual products.
