EPE foam packaging (Expanded Polyethylene foam) is a closed-cell, non-abrasive cushioning material used to protect high-value, polished, and fragile products during transit and storage. EPE foam's unique combination of surface safety, shock absorption, chemical resistance, and moisture impermeability makes it the material of choice for electronics, automotive, medical devices, and premium consumer goods packaging.
What Is EPE Foam?
EPE (Expanded Polyethylene) is a flexible, closed-cell foam produced by expanding polyethylene resin with a blowing agent under controlled heat and pressure. The closed-cell structure means each air pocket is individually sealed — giving EPE foam excellent moisture barrier properties, zero water absorption, and complete chemical inertness. Unlike EPS (Styrofoam) which is brittle and crumbles, EPE foam is flexible, resilient, and recovers its shape after compression — making it reusable across multiple shipping cycles.
EPE Foam Product Forms
| Form | Description | Best For |
|---|---|---|
| EPE Sheets | Flat sheets 1-50mm thick | Surface wrapping, interleaving |
| EPE Rolls | Continuous rolls for dispensing | High-volume wrapping lines |
| EPE Profiles | Extruded L, U, T shapes | Edge and corner protection |

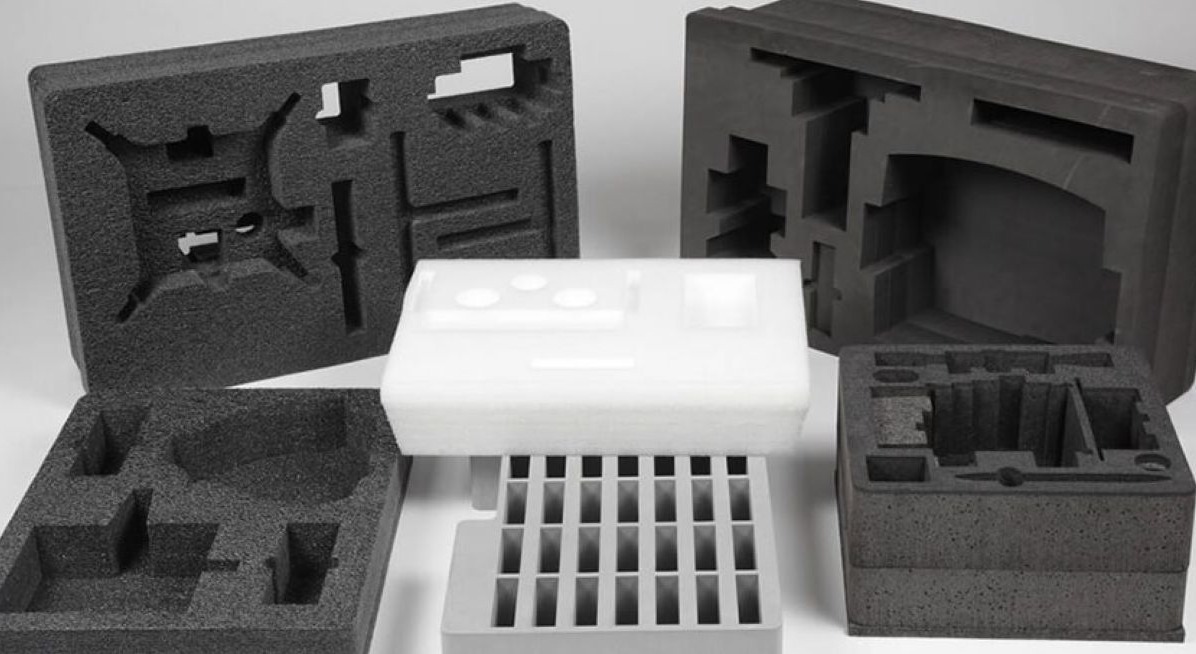

| EPE Fitments | CNC/hot-wire cut custom shapes | Precision product nesting |
| EPE Laminated | Foam + PE film or foil backing | Thermal insulation, moisture barrier |
| EPE Pouches/Bags | Pre-formed sleeves or bags | Quick-wrap for glass, screens |
Technical Specifications
| Property | Value |
|---|---|
| Density Range | 15-45 kg/m3 (standard: 20-25 kg/m3) |
| Cell Structure | Closed-cell — independent sealed air pockets |
| Water Absorption | Near zero (less than 0.01 g/cm3) |
| Temperature Range | -60°C to +80°C |
| Chemical Resistance | Inert to oils, greases, acids, most solvents |
| Compression Recovery | 85-95% after 50% compression |
| Surface Safety | Non-abrasive, non-scratching, lint-free |
| Recyclability | Recyclable (PE resin code 4) — specialty collection |
EPE vs Other Foams
| Property | EPE | EPS (Styrofoam) | PU Foam | EVA Foam |
|---|---|---|---|---|
| Flexibility | Flexible | Rigid/brittle | Flexible | Flexible |
| Recovery | 85-95% | Permanent crush | 70-85% | 90-95% |
| Surface Safety | Non-abrasive | Can scratch | Safe | Safe |
| Water Resistance | Excellent | Absorbs slowly | Absorbs | Good |
| Reusability | Multi-trip | Single-use | Multi-trip | Multi-trip |
| Dust/Debris | None | Bead break-off | Minimal | None |
| Cost | Moderate | Lowest | High | Highest |
Industry Applications
| Industry | Application | Why EPE |
|---|---|---|
| Electronics | Screens, PCBs, appliances | Non-abrasive + anti-static options |
| Automotive | Painted parts, chrome, glass | Zero surface marking |
| Furniture | Polished wood, glass tops | Non-scratching, conforms to shapes |
| Medical | Devices, instruments | Chemically inert, cleanroom safe |
| E-Commerce | Premium product wrapping | Premium unboxing, reusable |
| Solar | Panel interleaving | Prevents glass-to-glass contact |
Density Selection Guide
15-20 kg/m3 (Low): Light surface wrapping, interleaving between items. Cost-optimized for high volume.
20-30 kg/m3 (Standard): General cushioning, corner guards, edge profiles. Most common density for electronics and automotive.
30-45 kg/m3 (High): Heavy-duty fitments, precision nesting, high-load bearing. Used for heavy machinery parts and defense applications.
Anti-Static EPE: Carbon-loaded or surface-treated for ESD protection (10^6-10^9 ohms). Essential for PCBs, semiconductors, and sensitive electronics.
EPE Foam Solutions from BENZ Packaging
Sheets, rolls, profiles, custom CNC-cut fitments, anti-static variants. ISO 9001 certified.
Free product packaging assessment. Pan-India delivery.
Request a Free Quote at benzpackaging.com
